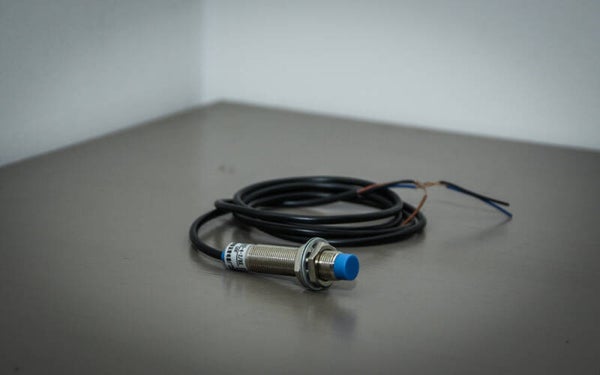

inductive (metal) sensor

The sensor is to generate a pulse for the tripmaster were there is no workable electronic pulse from the car or where you want to take a pulse from another (non-driven) wheel. The pulse sensor can be installed to detect metal that passes by the head of the sensor. This low-cost sensor is good to detect reliable 1 to 2 in a wheel circumference (in 1 rotation of your wheel).

Specification:

• M12:Thread of M12
• Detection distance
  • M12: 2 mm
• 1m Cable
• NPN Transistor setup
• 12 Volt power supply (can be directly connected to the tripmaster)

Remark: For a M8 version we have to refer to the HR version.

Dimensions:

M12: Round 12
